Photo Gallery – Motorcycle
Note: Click on thumb‑nail image below for detailed spec's and additional pictures with a larger View
All vehicles are Powered By D&D Motor Systems.
|

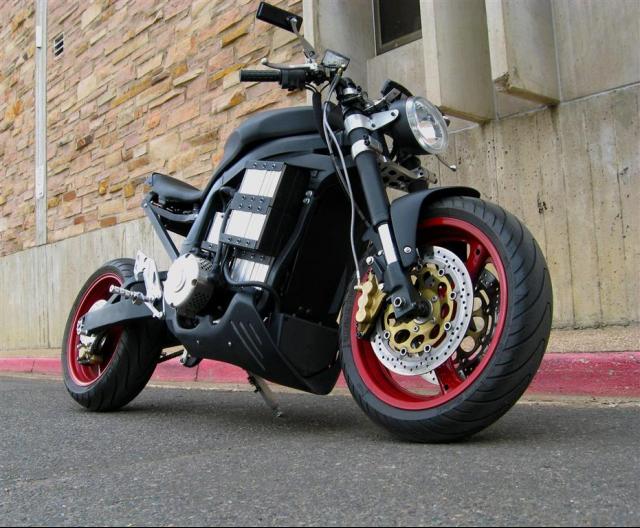

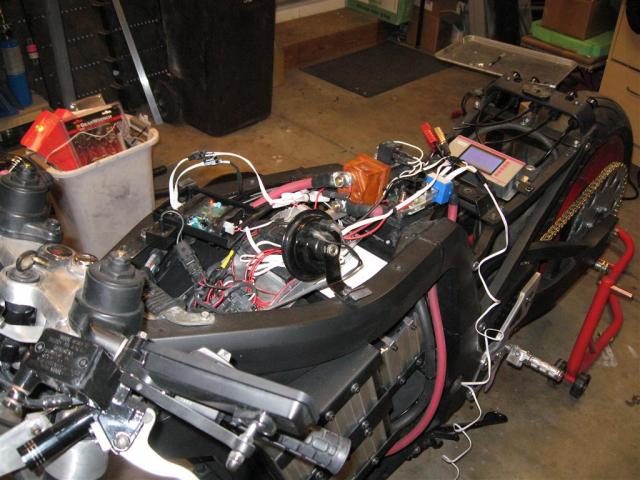

Electric Motorcycle

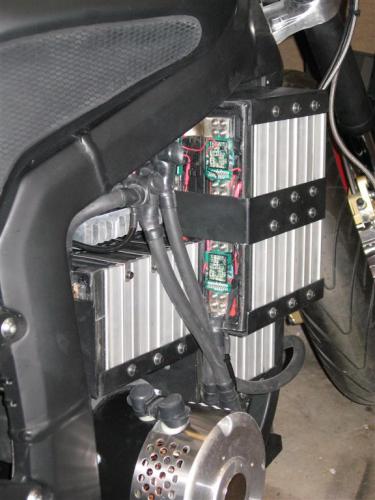

| Owner | Noah Podolefsky | ||
|---|---|---|---|
| Owners Other EVs | 1997 Chevroelt S-10EV EVD | ||
| Location | Boulder- Colorado US map | ||
| Web/Email | WebPage | ||

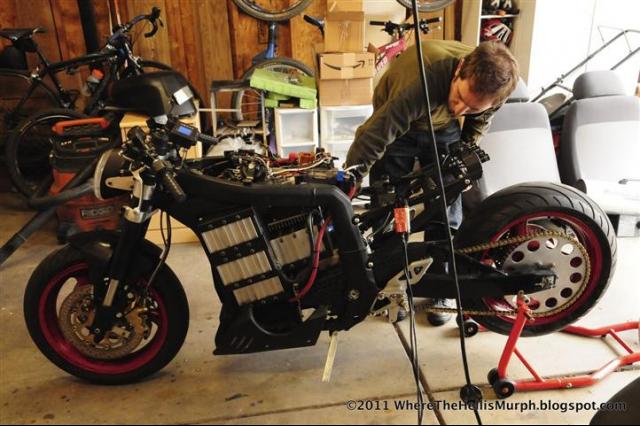

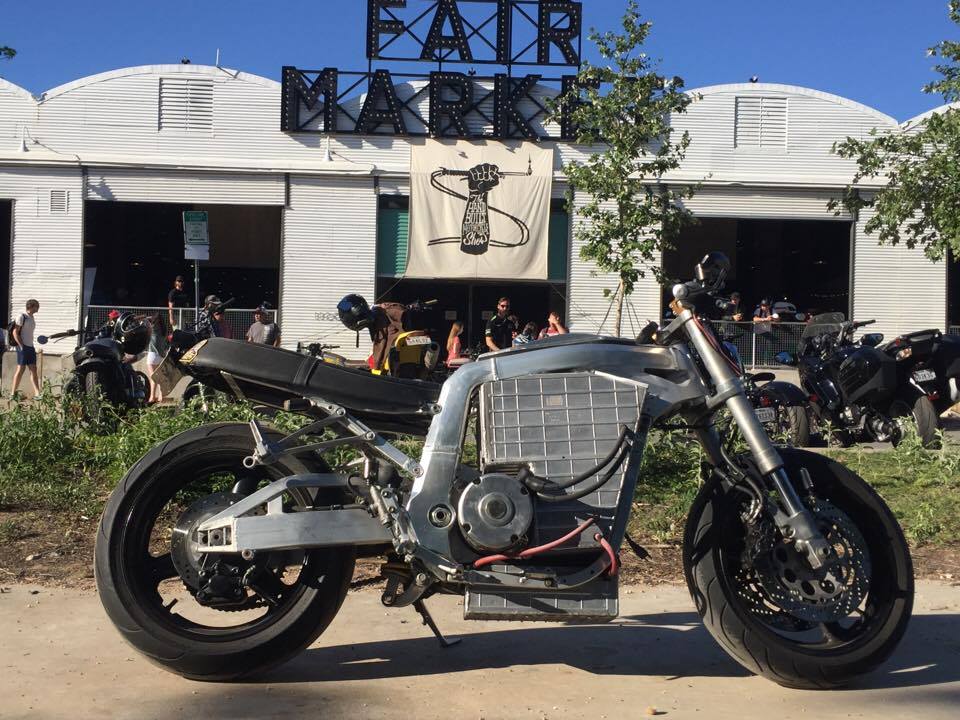

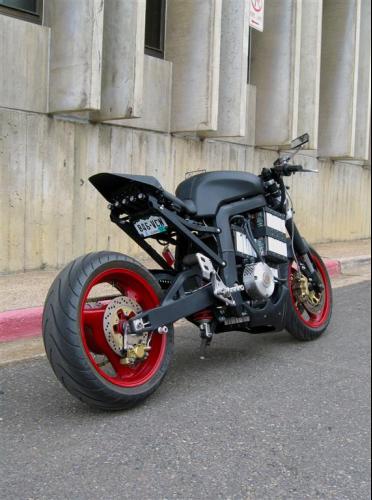

| Vehicle | 1994 Suzuki GSX-R 1100 This was a 94 GSX-R 1100 rolling chassis that I bought off of e-bay. These have a large and square main frame for motor and batteries. It arrived in about 1000 pieces- which Ive been slowly putting back together over the last 8 months. Inicdentally- GSX-R stands for Grand Sport eXperimtal - Racing. I replaced Racing with Electric...which made it sex-E. | ||
| Motor | D&D Motor Systems- Inc. ES-15-6 Series Wound DC Went back and forth - finally settled on this. Consensus seems to be that regen on a motorcycle is pretty useless...and these motors have more power than the equivalent sepex or PM. AC has a bit more power- but at more than twice the cost. | ||
| Drivetrain | Direct chain drive 5:1. 65 tooth rear- 13 front. | ||
| Controller | Alltrax 7245 Pretty standard. | ||
| Batteries | 24 other GBS- 3.60 Volt- Lithium Iron Phosphate GBS LiFePO4 from Elite power solutions. They rate the set up at 60 Ah- 87 V max- 76 nominal. Integrated BMS. The wider battery packs that bulge out near the front are suggestive of the inline-4 from the original GSX-R. | ||
| System Voltage | 76 Volts | ||
| Charger | Elite Power Solutions | ||
| Heater | Leather jacket. | ||
| DC/DC Converter | ??? This is the little 10A deal that Thunderstruck sells. It only has to power my headlight- LED tail and turns- and the gauge cluster (about 7A total). Its cheap and small. | ||
| Instrumentation | Trailtech Vapor | ||
| Top Speed | 70 MPH (112 KPH) ...at least- thats the plan. I have it geared to hit 70 at about 4700 RPM. The ES-15-6 is rated to 5500 RPM- so Im hoping this will hit 70 with room to spare...but well have to see. | ||
| Acceleration | Fast...I hope. | ||
| Range | I dunno. Others with similar setup say 30- 50 mi- so thats my guess. | ||
| EV Miles |
| ||
| Seating Capacity | 1 adult | ||
| Curb Weight | 375 Pounds (170 Kilograms) About 100 lb lighter than the original ICE GSX-R 1100. (Estimate based on weight of rolling chassis + specs for motor / controller / batteries) | ||
| Tires | Michelin | ||
| Conversion Time | So far- about 12 months...just finished the bike 1/15/2011. Still a few odds and ends- but it is together and running. | ||
| Conversion Cost | Ive pretty much lost track- but I estimate about $7000 invested. | ||
| Additional Features | Ive pretty much rebuilt this entire bike from the ground up. It came in about 1000 pieces- many of which didnt even match. I spent hundreds of $$ on new parts- paint- more parts- more paint... Custom headlight- taillights- turns- stripped everything down and repainted...fabricated the motor mount- headlight bracket- indicator lights- shaved the subframe and recovered the seat...after market lower fairing- mirror... Anyway...describing all the custom fabricated and machined parts is too much for here. Please check out my web-page. Ive done everything myself- either in my garage or in the machine shop where I work. | ||
| This thing has been a chameleon for the last 8 months. I havent been able to afford the motor and batteries until just recently- so I just keep changing things on the style side. Its actually given me a lot of time to work on the bike itself. Been a lot of fun tweaking the design- trying to get it just the way I want it. If Id had the money for the conversion right away- I would have just built it without all the custom work. I view building this bike as functional art. My inspiration comes from a mix of modern street-fighters- cafe-racers- and old school bobbers (emphasized by the flat-black with red wheels and brushed aluminum). And a little pimpin gold around the edges. I have to put in a shout out for the Jacob Smith who is building el-Gixxer. Thats how I decided to get a 93-95 era GSX-R chassis. Its like that frame was MADE to be converted to electric. Thanks Jacob (and Suzuki). | |||

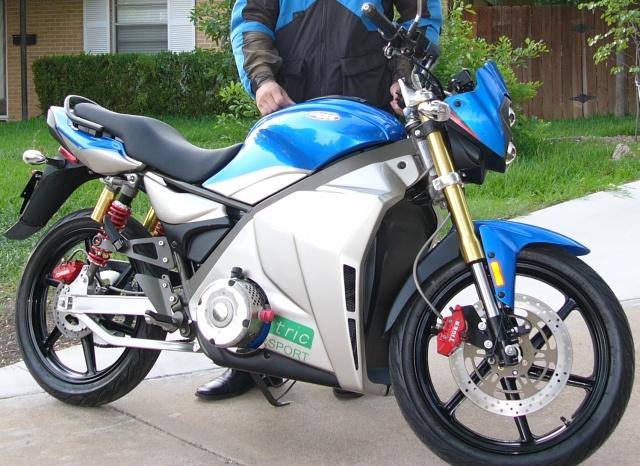

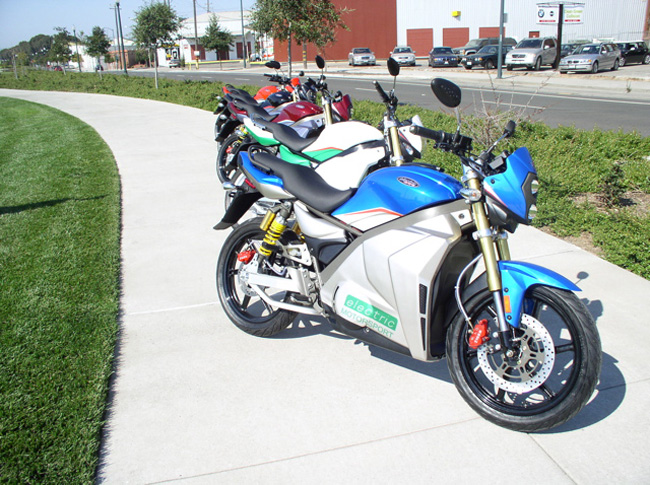

Electric Motor Sport - GPR-S
| Owner | P | ||||||
|---|---|---|---|---|---|---|---|
| Location | Austin- Texas US map | ||||||
| Web | WebPage | ||||||
| Vehicle | 2009 Electric Motorsport GPR-S Street legal bike up to ~70 mph with 15-tooth sprocket. Fun bike thats easy to ride. The original configuration was with SLA cells. Range was too short so I upgraded to LFPs. Its much more useful now. One of the great features of the GPR-S is its modularity and flexibility. Few other bikes even have the option to upgrade to a completely different battery chemistry. | ||||||
| Motor | D&D Motor Systems- Inc. Separately Excited DC | ||||||
| Drivetrain | Direct drive D&D Sepex regen motor with Sevcon PowerPak. Up to 25hp / 4500 rpm. | ||||||
| Controller | Sevcon PowerPak PP784 | ||||||
| Batteries | 24 Thunder Sky 40Ah- 3.20 Volt- Lithium-Ion TS LFP (lithium iron phosphate) batteries | ||||||
| System Voltage | 72 Volts | ||||||
| Top Speed | 70 MPH (112 KPH) | ||||||
| Range | 30 Miles (48 Kilometers) Upgraded from SLA to LFP which tripled the range. | ||||||
| Watt Hours/Mile | 100 Wh/Mile | ||||||
| EV Miles |
| ||||||
| Seating Capacity | 2 adults | ||||||
| Curb Weight | 310 Pounds (140 Kilograms) | ||||||
| Conversion Cost | $6700 + $3300 (LFP upgrade) | ||||||
| Additional Features | Regenerative braking Integrated charger w/ power port (mod) USB charge port (mod) Standard motor mount points allow for easy upgrades LFP battery upgrade | ||||||
| Getting support from EMS has been a struggle. | |||||||

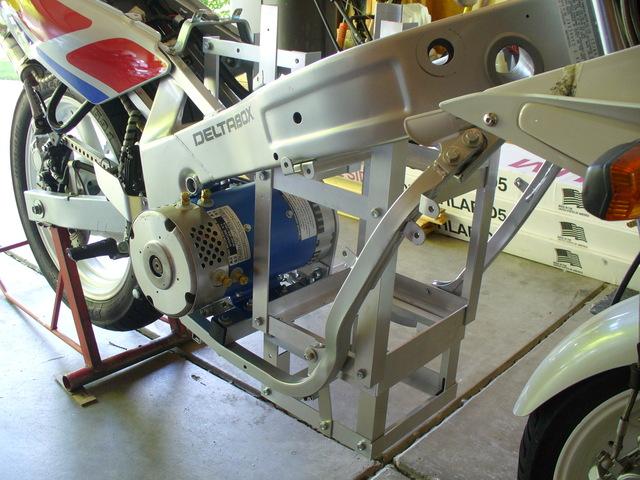

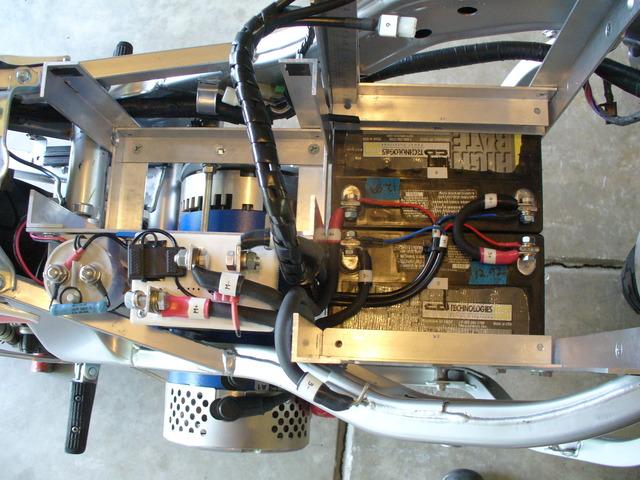

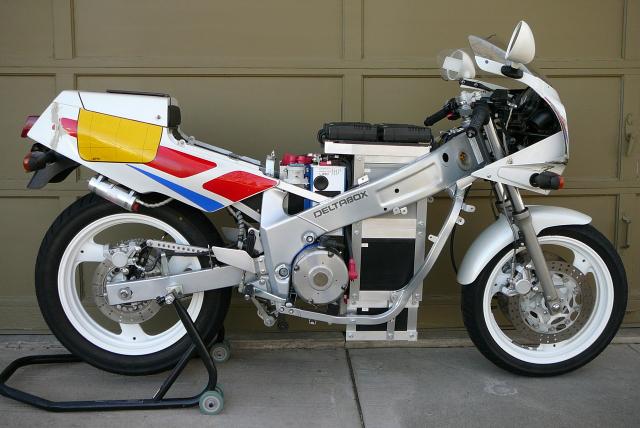

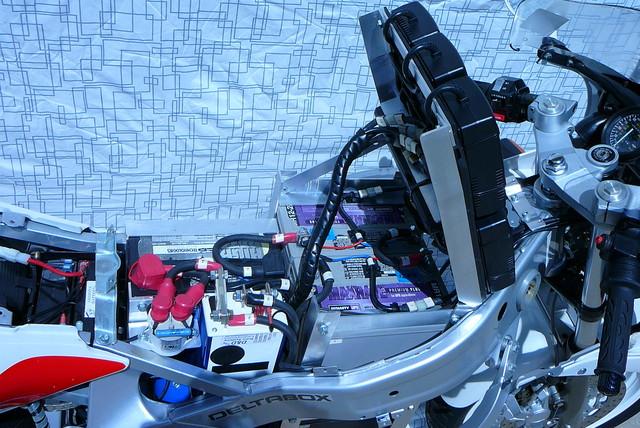

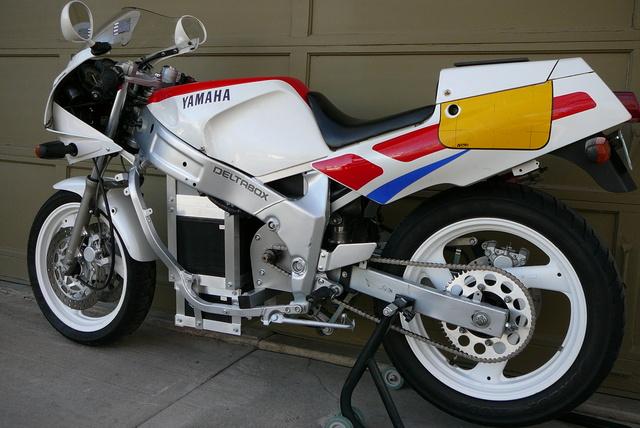

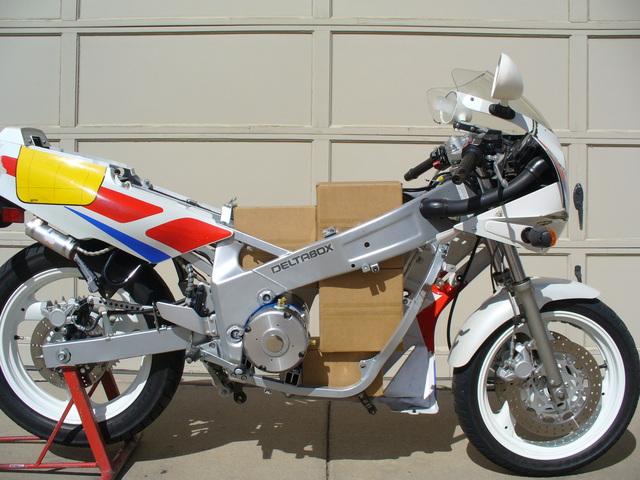

1989 Yamaha FZR 600
| Owner | Andy Nyman |
|---|---|
| Location | Littleton, Colorado US map |
| Vehicle | 1989 Yamaha FZR 600 One of my old road race bikes MRA #128 Sold the ICE motor. |

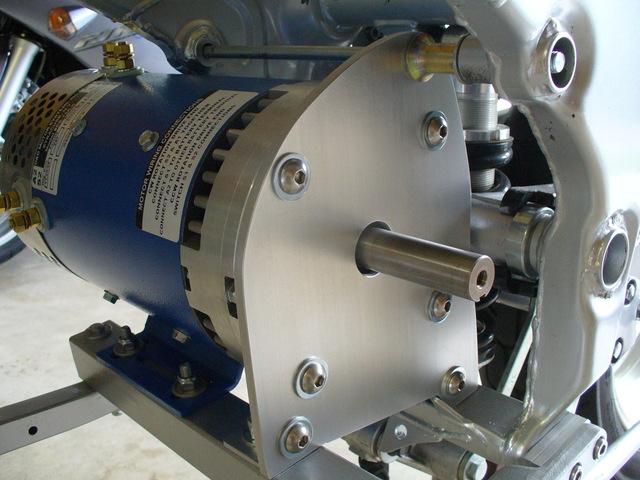

| Motor | D&D Motor Systems, Inc. ES-15A-6 Series Wound DC * 48-72 VDC Series Motor * 9 HP @ 72V Continuous Rated * 65 Ft /Lbs Torque Peak * 30 HP Peak with 450 Amp Controller * 7/8" Single-Shaft, 6.7" Dia by 12.28" Long * Actual weight 62 lbs |
| Drivetrain | Direct drive- 13/60 Sprockets (4:62) #40 Chain, (420)60t Rear Sprocket. 12,13,14,15,16- #40- 7/8" bore Primary Sprockets. |
| Controller | Alltrax 7245 72 Volt 450Amp Programmable via RS232 comm port using PC or Laptop. Contactor- Kilovac EV200 |

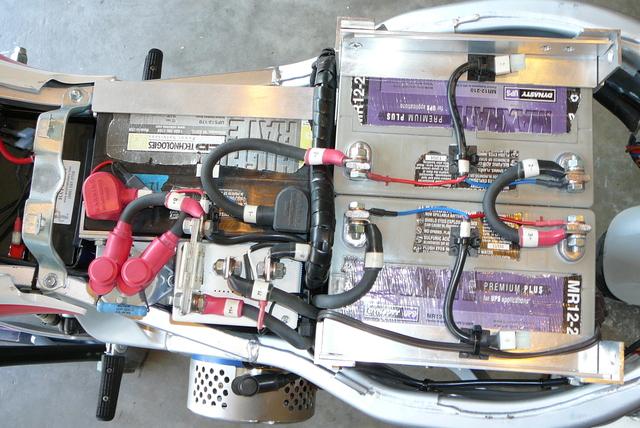

| Batteries | 6 C & D Technologies UPS 12-170, 50Ah, 12.00 Volt, Lead-Acid, AGM Round one starter batteries. Can't wait to upgrade to? |
| System Voltage | 72 Volts |
| Charger | H01200100-US-W11 12V 10A Lead Acid Smart Charger Quantity-6 on-board |
| DC/DC Converter | None Auxiliary 12 Volt 12Ah battery and on-board 1amp charger. |
| Instrumentation | OEM MPH/ODO, Digital voltmeter. May add Pak-TraKer or? |
| Top Speed | 65 MPH (104 KPH) With 15/60 (4:00) Gearing 55MPH 13/60 (4:62) Gearing Goal 80-90MPH (Better batteries) |
| Acceleration | Pulls hard to 45MPH then tapers off. |
| Range | 15 Miles (24 Kilometers) The batteries are not that good. Need more volts, amps and lighter weight. |
| Seating Capacity | 1 Adult |
| Curb Weight | 475 Pounds (215 Kilograms) I can't wait to get the lead out! |
| Tires | Dunlop K591 Sport Elite |
| Conversion Time | Many long nights and weekends. It's been a great project, I have learned a lot! |
| Conversion Cost | Around $2000 so far, not including the bike witch was one of my old road race bikes. |

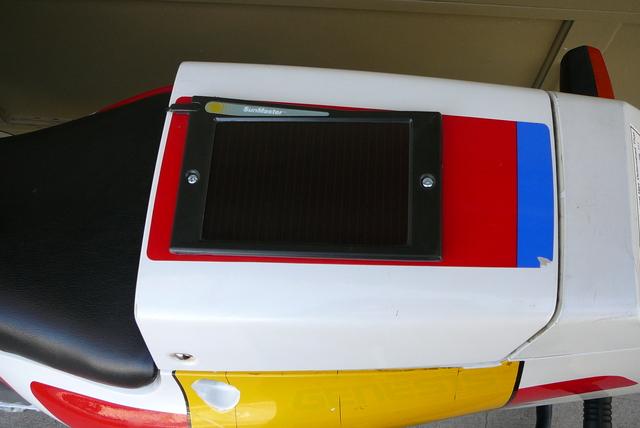

| Additional Features | * Small solar charger mounted on tail for 12v lighting battery. * On-board chargers fit under OEM tank shell and tilt up for battery access. 120v charger plug fit perfect in the frame radiator inlet. * Aluminum L-Angle battery brackets can be modified when upgrading batteries. * I'm very happy with my 6061 aluminum motor mount. * HID head lights and LED marker lights, body work and paint to come. |
electric motorcycle motor
| Owner | Steve Limon | ||||
|---|---|---|---|---|---|
| Location | Chino- California US map | ||||

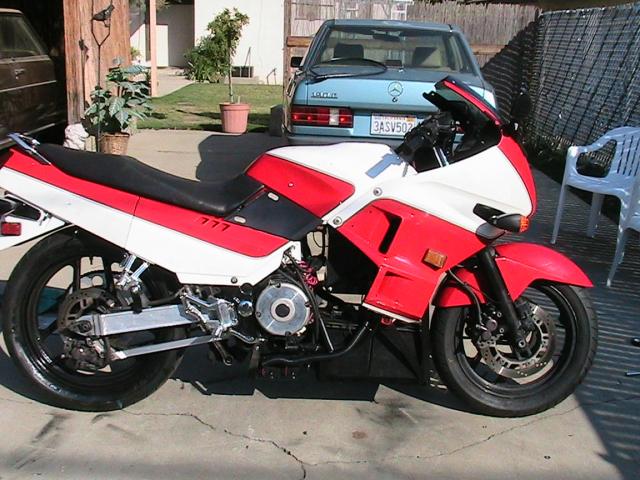

| Vehicle | 1987 Kawasaki 750 Ninja | ||||
| Motor | D&D Motor Systems- Inc. Separately Excited DC Pulls really well - barely gets warm! | ||||
| Drivetrain | Direct drive (#40 chain) | ||||
| Controller | Alltrax 400 amp | ||||
| Batteries | 4 Wal-Mart Marine- 12.00 Volt- Lead-Acid- Flooded 85 ah (about $45 each). | ||||
| System Voltage | 48 Volts | ||||
| Charger | Four on board chargers - one for each battery. Six amps each. | ||||
| DC/DC Converter | Cheap one - about $40 Disconnected it - really decreased my range! Tapping 12 volts for now. | ||||
| Instrumentation | Bicycle speedometer (stock one was broken). Generic multimeter. Thats it! Will install battery meter soon. | ||||
| Top Speed | 45 MPH (72 KPH) 6:1 Gear ratio so top speed is limited. | ||||
| Acceleration | Excellent acceleration - quite quick! | ||||
| Range | Still testing - not much. | ||||
| Watt Hours/Mile | Dont know yet. | ||||
| EV Miles |
| ||||
| Seating Capacity | 2 (Ran just as well with a 140 pound passenger!) | ||||
| Curb Weight | 460 Pounds (209 Kilograms) About same as ICE | ||||
| Tires | Pirelli Demons | ||||
| Conversion Time | About 50 hours labor over about 3 months. But TONS of hours looking at Austinev- YouTube- and other websites getting ideas! | ||||
| Conversion Cost | About $2-800 including donor. | ||||
| Additional Features | Chose the Alltrax Controller because it comes with free software to adjust motor power- throttle rate- etc. Can also print a history of what happened (amps used- voltages- throttle positions- etc). | ||||
| For a video summary of this project- go to www.YouTube.com and enter QUITGAS in the searchbox. | |||||

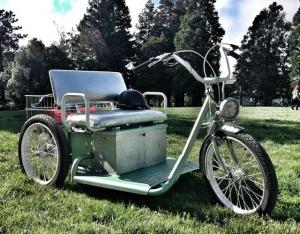

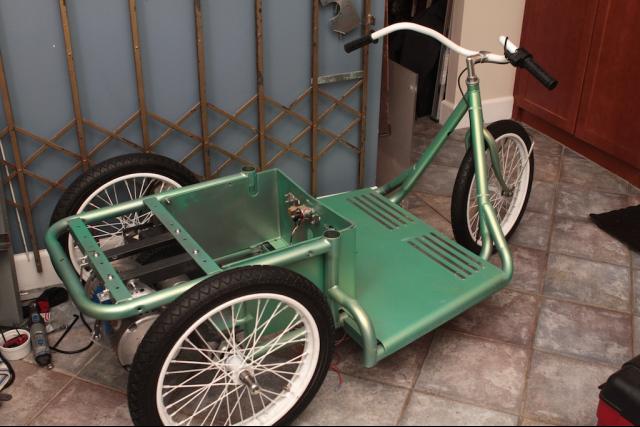

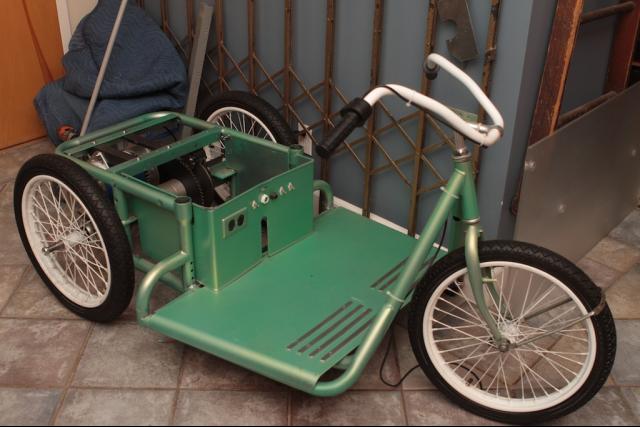

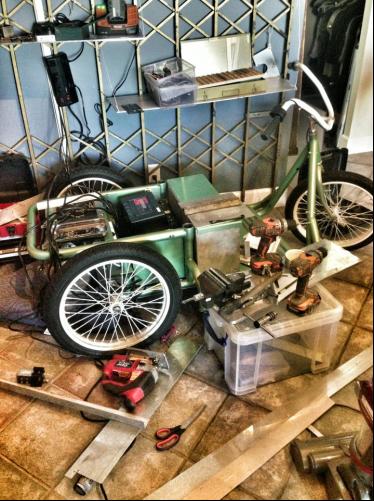

Palmer Twosome
| Owner | Rich Porter | ||||
|---|---|---|---|---|---|
| Location | San Francisco, California US map | ||||

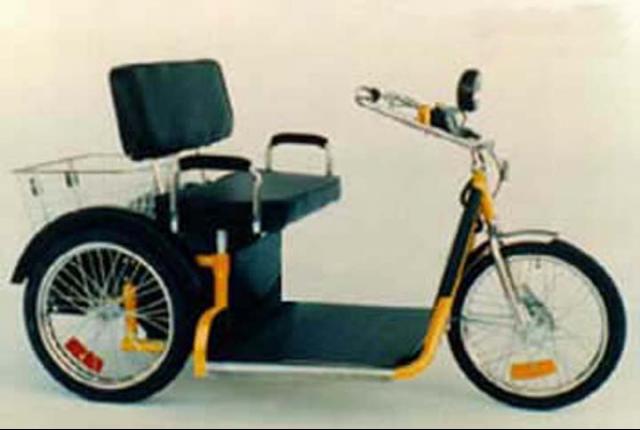

| Vehicle | 1985 Twosome Palmer senior mobility devices. WebPage This is going to be used for putting around San Francisco. | ||||

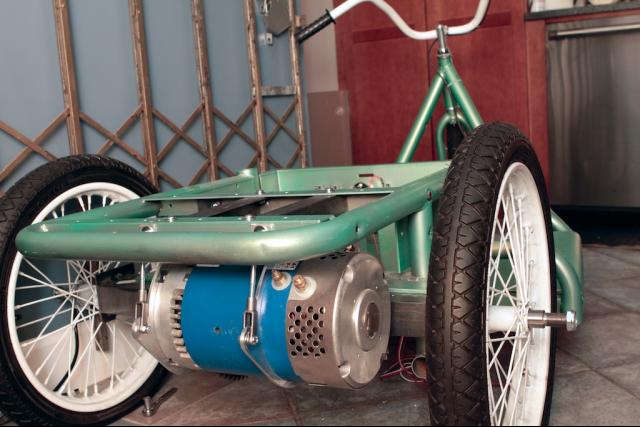

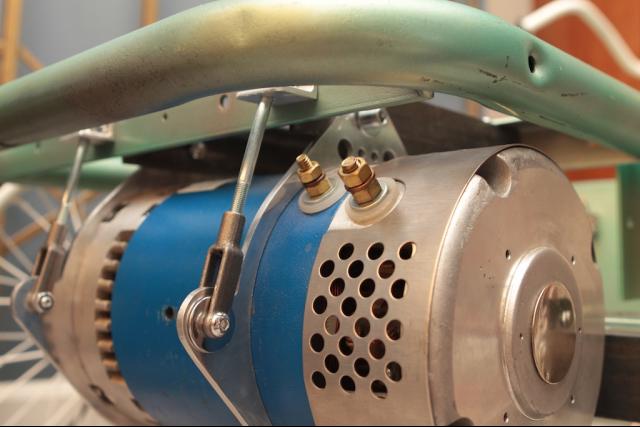

| Motor | D&D Motor Systems, Inc. ES-10-33 Shunt Wound DC Could get up to 19 HP if I connected a bigger controller. Original vehicle has a riding lawnmower gearbox/differential. I replaced that with a 1" go kart differential from Northern Tools. | ||||
| Drivetrain | Original drivetrain was a 12v motor with a 5 speed lawnmower transmission. | ||||
| Controller | Alltrax DCX 300 | ||||

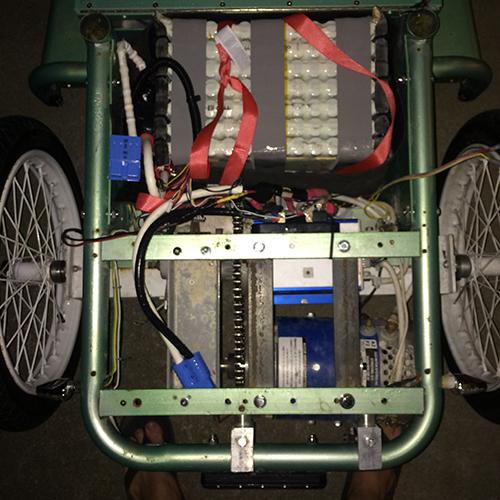

| Batteries | 2 Zero Motorcycle Battery, 58.60 Volt, Lithium-Polymer Total pack 58.6v 48AH. The battery was built for me by a friend who combined two Zero motorcycle packs. | ||||
| System Voltage | 58 Volts | ||||
| Charger | Chinese | ||||
| Top Speed | 40 MPH (64 KPH) Unknown | ||||
| Acceleration | Faster than most cars. Currently limited by the controller. I think I need to re fabricate the motor mount system because at high acceleration, I get a click noice that I believe is from the chain drive alignment getting off. | ||||
| Range | 40 Miles (64 Kilometers) | ||||
| EV Miles |
| ||||
| Seating Capacity | 2 adults | ||||
| Curb Weight | 200 Pounds (90 Kilograms) | ||||
| Tires | New motorcycle rims. | ||||
| Additional Features | Powder coated everything. Awoooogah horn. Silver faux leather seats. LED lights everywhere. |

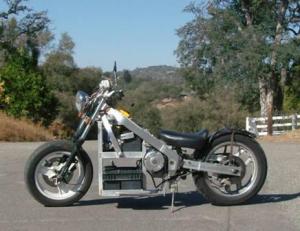

1986 Honda VFR
| Owner | Marc Michon | ||||||
|---|---|---|---|---|---|---|---|
| Location | Coarsegold- California US map | ||||||
| Web/Email | |||||||
| Vehicle | 1986 Honda VFR | ||||||
| Motor | D&D Motor Systems- Inc. Separately Excited DC 84 Volt- | ||||||
| Drivetrain | chain- direct 4.8 to 1 | ||||||
| Controller | Sevcon Powerpak SEM PP784 60-80 Volt 425 amp | ||||||
| Batteries | 7 B and B EVP33-12- 12.00 Volt- Lead-Acid- AGM | ||||||
| System Voltage | 84 Volts | ||||||
| Charger | Zivan NG1 84 v 13 amp | ||||||
| Heater | gloves- jacket- long johns | ||||||
| DC/DC Converter | Sevcon 84v - 12v 300 watt | ||||||
| Instrumentation | 400 DC Amp Craftsman clamp on meter- cheapo volt meter | ||||||
| Top Speed | 75 MPH (120 KPH) uphill | ||||||
| Acceleration | FAST at mile marker my Toyota hits 40 mph- VFR is hitting 60 mph | ||||||
| Range | 12 Miles (19 Kilometers) paying for speed and pack too small will be going LifePO | ||||||
| Watt Hours/Mile | 173 Wh/Mile up hills @ 60-75 mph | ||||||
| EV Miles |
| ||||||
| Seating Capacity | 1 adult | ||||||
| Curb Weight | 340 Pounds (154 Kilograms) | ||||||
| Tires | Chen Shin | ||||||
| Conversion Time | 6 months | ||||||
| Conversion Cost | $1-500 | ||||||
| Additional Features | LED tail/stop/signal lights all on .4 Amp made for diesel trucks DOT approved 1939 Indian MotoLamp headlight custom made 25watt Halogen Pre-focus bulb Real Indian Footboards- comfy Registered as Motorcycle | ||||||
| Going to play with gear ratio see if can get range up and watt hour down Will build new bike this winter lighter weight etc. was shocked how fast- lots faster than- previous Etek motor but not as efficient. but i can reach highway speeds now.. all riding above 55 mph- pull out of driveway- on Highway- traffic 60 mph | |||||||

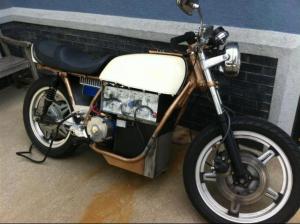

Honda CB
| Owner | Julian Santa-Rita | ||||||
|---|---|---|---|---|---|---|---|
| Location | Fayetteville- Arkansas US map | ||||||
| Web/Email | WebPage | ||||||
| Vehicle | 1978 Honda CB750 F2 Built by my fiance Lori and I with the help of a local machine shop- Ironman Fabrications time and space. A CraigsList.org donor invited me to drag this motorcycle out of his yard. It took three of us to get it onto a truck sideways and we left a streak where the rear tire had dug into his grass. The thing was rusted in a locked up position. | ||||||
| Motor | D&D Motor Systems- Inc. Separately Excited DC 13HP regen and reverse. Capable of ~300A. Id liken it to a 250cc bikes power- though when and how they make power are different. If I had gears like a Honda rebel itd be no contest. | ||||||
| Drivetrain | One speed- 420 chain. 12/60 gears. | ||||||
| Controller | Alltrax 4884 300A controller. | ||||||
| Batteries | 16 China HiPower HiPower LifePo4- 3.20 Volt- Lead-Acid- AGM The whole pack is 100AH at 48V. Do far ive gone 20 mile son it- so no clue on real range- though I suspect its over 60 mi in mixed driving. Update soon. | ||||||
| System Voltage | 48 Volts | ||||||
| Charger | unknown BC0 or BCO 16 cell balancer charger for Li 58.6v- 8Amp. Slick Little fellow works well. after first rides- the batteries are within 30mv of each other. | ||||||
| Heater | whatever Im wearing. | ||||||
| DC/DC Converter | nope. isolated circuit. Solar powered 5v USB circu LI rechargeable battery powered- and the back tail-light is a spooklight that has accelerometer controlled brake lights and turn signals that are wirelessly controlled by a remote on the handle bars. | ||||||
| Instrumentation | factory Honda Speedo. CellLog monitors on all cells. 48v cart gauge for overall pack at a glance is mounted to the tank. | ||||||
| Top Speed | 55 MPH (88 KPH) The top speed is around 55 mph so far. Only the Interstate and highways around NWA are over 40mph- so I have enough go-power to get a speeding ticket just about everywhere in my range. | ||||||
| Acceleration | confidence inspiring- and really quite good. 0-30 is faster than most cars are at the stoplights. 30-50 is smooth but slower. Im due to experiment with the gearing some. Itll do a burnout. | ||||||
| Range | 50 Miles (80 Kilometers) Will update with solid scientific information soon. | ||||||
| Watt Hours/Mile | tbd. instrumentation is lacking. Only have a battery meter. | ||||||
| EV Miles |
| ||||||
| Seating Capacity | 2ish. seats 2 but no rear sets for passenger feet. easy to add them back. | ||||||
| Curb Weight | 400 Pounds (181 Kilograms) this is an absolute guess- but it is lighter and better handling than before. | ||||||
| Tires | some on sale rubber from oldbikebarn.com front tire came with the e-bayed rim. | ||||||
| Conversion Time | Ive spent about 3 years doing this.Ive even moved houses in between. This is the bikes Revision 2.0 Anything I Know I did wrong the first time I have corrected but Im sure there is more to learn. | ||||||
| Conversion Cost | 3-4000$ from scratch. almost all of that is EV pats. TH lead acid version was half that. | ||||||
| Additional Features | The bike has had the rear brake deleted and shaved down the old brackets so now the regen motor does all rear braking. | ||||||
| extra special thanks to my wife! | |||||||

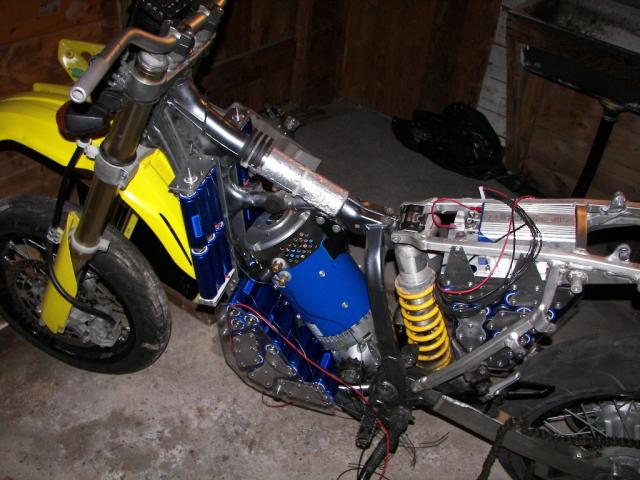

electric motorcycle motor

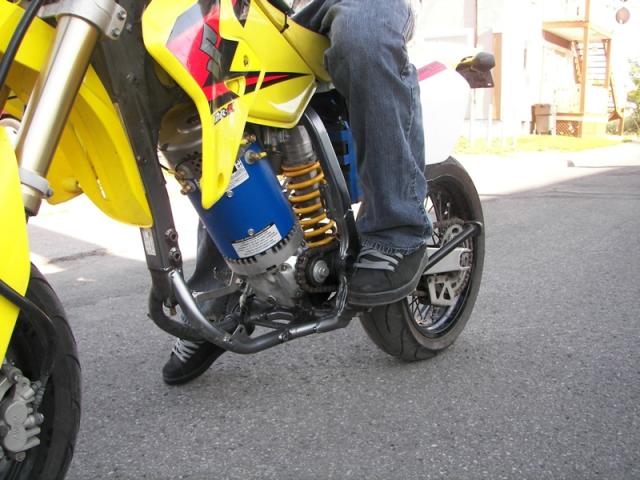

| Owner | Yan |
|---|---|
| Location | St-Jean-sur-Richelieu- Quebec Canada |

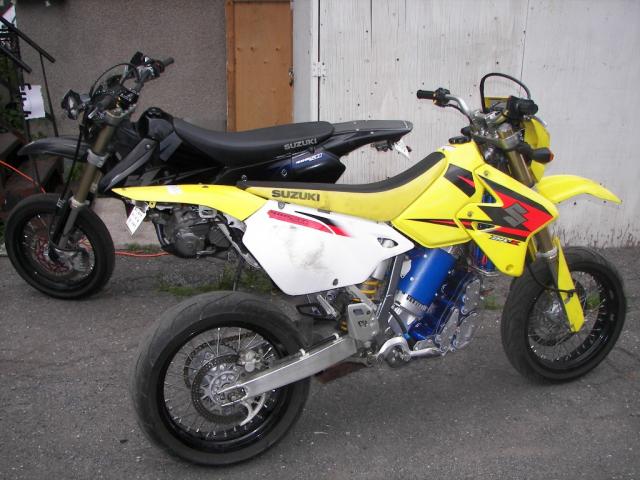

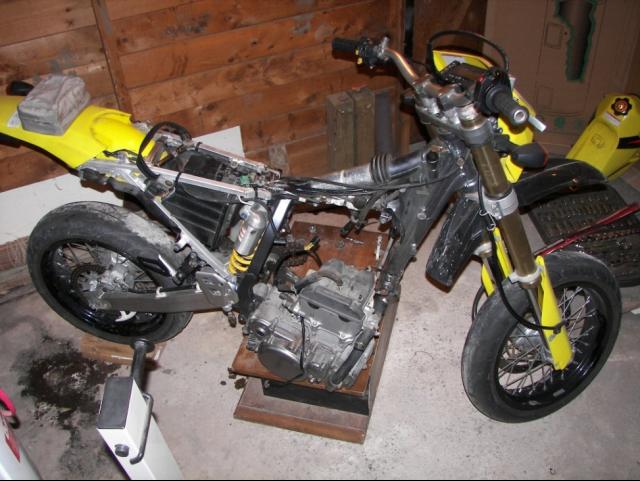

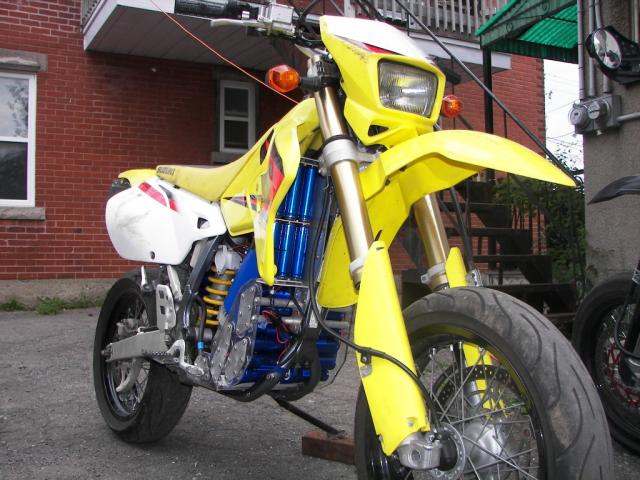

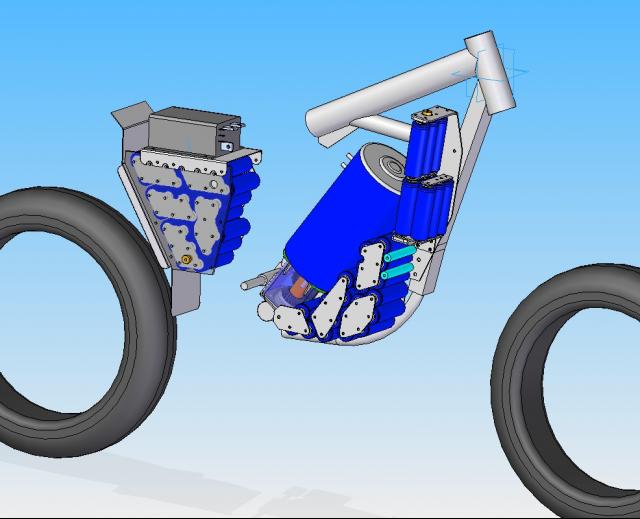

| Vehicle | 2005 Suzuki DRZ 400 SM |

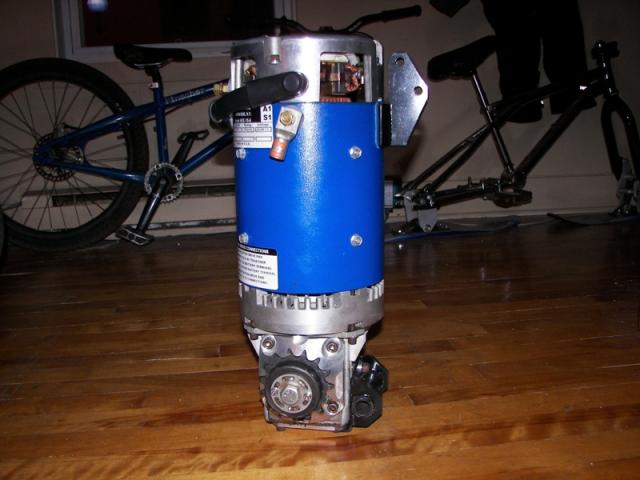

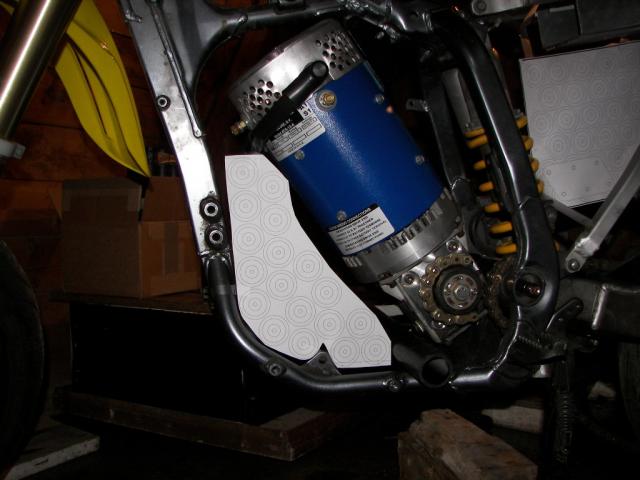

| Motor | D&D Motor Systems- Inc. ES-15-6 Series Wound DC |
| Drivetrain | right angle gearbox custom with 15-41 sprocket for 4.1:1 ratio. He have move this summer for the 36 volts ride. The gear box work fine. |
| Controller | Logisystems 48-72 volts- 700 amps It limit me at 84v nominal |

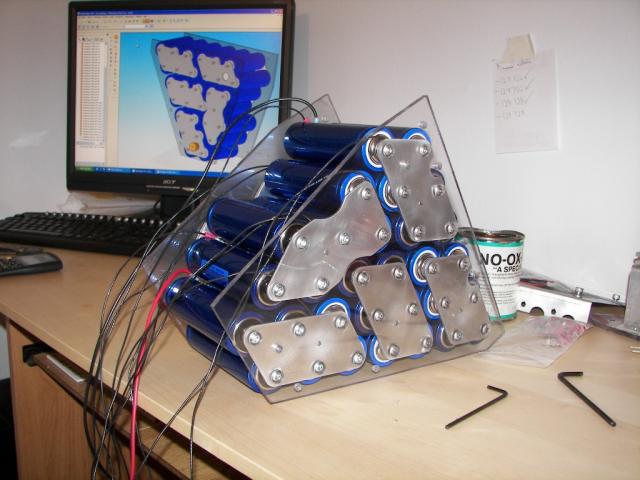

| Batteries | 90 Headway 38120S 10Ah- 3.20 Volt- Lithium-Ion 90 cells on three pack. 30S-3P I only test it at 84v (26S-3P)cause by the Logisystems |
| System Voltage | 96 Volts |
| Charger | ICharger 1010B+ (3x) Onboard. They monitor pack during discharge. |
| DC/DC Converter | Vicor |
| Top Speed | 68 MPH (109 KPH) After test at 84v Probably more at suposed 96v |
| Acceleration | I expect 0-60 faster than ICE (5.3 sec.) After test at 84v (14% less power): 0-50 under 5 sec. 0-62 mph in about 10 sec. |
| Range | 20 Miles (32 Kilometers) Minimum need |
| Curb Weight | 320 Pounds (145 Kilograms) I expect he will be same than ready to ride DRZ 400 SM |
| Conversion Time | One year part time. |
| Conversion Cost | 8000$ can. Including 3750$ DRZ 400 SM |
| Additional Features | 36 volts test video: And now some first ride at 84 volts: |

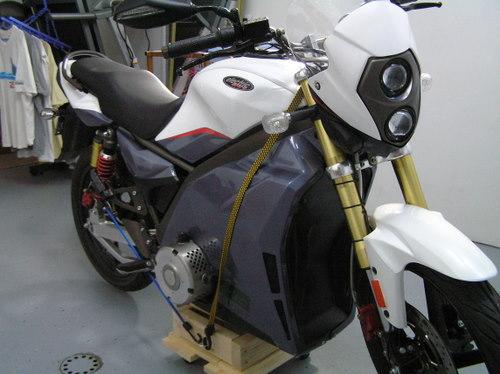

Electric Motorsport GPR-S 2009

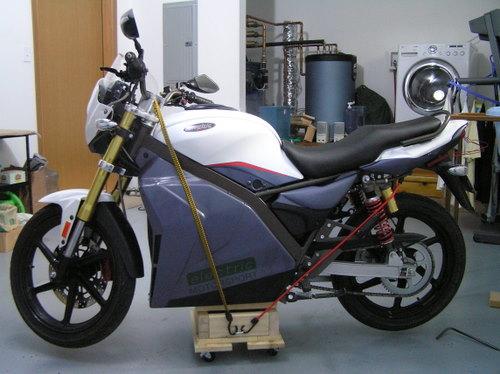

| Owner | David Williams | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Location | North Pole- Alaska US | ||||||||

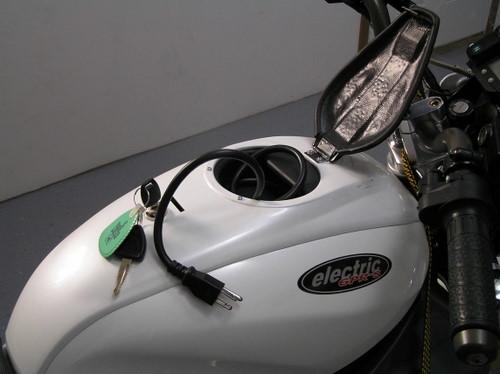

| Vehicle | 2009 Electric Motorsport GPR-S Low center of gravity. Excellent maneuverability. Very fun bike to ride. | ||||||||
| Motor | D&D Motor Systems- Inc. SepEx Separately Excited DC Greater rpm range & higher top speeds Higher efficiency Regenerative motor braking | ||||||||
| Controller | Sevcon | ||||||||
| Batteries | 24 Thunder Sky 53ah- 3.20 Volt- Lithium-Ion | ||||||||
| System Voltage | 72 Volts | ||||||||
| Charger | EMS | ||||||||
| Top Speed | 70 MPH (112 KPH) | ||||||||
| Acceleration | Easy off the start- pick up after 15-20mph | ||||||||
| Range | 60 Miles (96 Kilometers) Power/Economy | ||||||||
| EV Miles |
| ||||||||
| Seating Capacity | 2 adults | ||||||||
| Curb Weight | 285 Pounds (129 Kilograms) | ||||||||
| My first electric motorcycle & definitely loving it. Electric Motorsport sells vehicles & a wide variety of components for your EV needs. | |||||||||

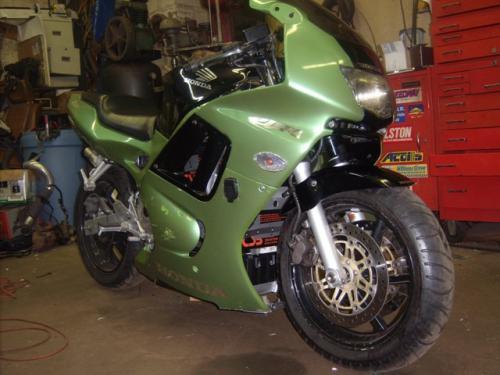

1997 Honda CBR 600 F3
| Owner | Mike Kugler | ||||
|---|---|---|---|---|---|
| Owners Other EVs | 1987 Kawasaki KLF110 1971 General Electric Elec-Trak | ||||
| Location | Hope Valley- Rhode Island US | ||||
| Vehicle | 1997 Honda CBR 600 F3 CBR 600 was complete and running ICE before conversion. Sold all ICE parts and paid for original purchase price. | ||||

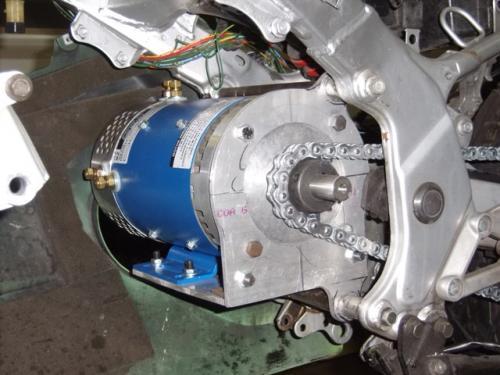

| Motor | D&D Motor Systems- Inc. ES-15-A Series Wound DC 72 Volt 40 HP peak 6.8 DIA X 16.8 long 65 lbs Crisp- smooth and powerful! | ||||
| Drivetrain | D&D ES15-A 72 Volt motor- direct drive 13/56 sprockets | ||||
| Controller | Kelly KDH09500 OPTO Isolated 96 Volt 500 AMP OPTO Isolated. Very nice controller. | ||||
| Batteries | 6 C & D Technologies 75 AH High Rate Series- 12.00 Volt- Lead-Acid- AGM 56 Lbs each- VERY difficult making these fit in a 600CC bike! | ||||
| System Voltage | 72 Volts | ||||
| Charger | Black & Decker 2/4/6 Amp x 6 I used 6 B&D 2/4/6 Amp chargers for bank charging. Eliminates the need for battery equalizers or BMS. Nice chargers for the money ($29ea). I would recommend stepping up to the 2/6/10 amp ones. 10 Amps would quicken the charge time without hurting the batteries. | ||||
| Heater | HA! I have been riding on 40 degree F mornings. BRRRRRR! | ||||
| DC/DC Converter | Kelly 72V - 12V 300 Watt Very nice DC-DC converter. Never a problem with lights dimming etc. One of the least expensive available. A little on the large side. Takes up a fair amount of space. | ||||
| Instrumentation | Pak-TraKer 600 amp model. A MUST HAVE! Panoram v-12 Bicycle wired computer: MPH/ODO/clock with max speed and distance memory. | ||||
| Top Speed | 60 MPH (96 KPH) Top speed at 72Volts is 64 MPH on the flats so far. easily cruises at 55 MPH | ||||
| Acceleration | I can pull away from stop lights quicker than most ICE cars. Pulls hard to 45 MPH- then tapers off up to 55 MPH. | ||||
| Range | 25 Miles (40 Kilometers) Max range is 25 miles cruising between 45-55 MPH- with medium sized hills. 20 Miles with me and my wife. 45-50 MPH. | ||||
| Watt Hours/Mile | never calculated | ||||
| EV Miles |
| ||||
| Seating Capacity | 2 adults | ||||
| Curb Weight | 600 Pounds (272 Kilograms) empty bike frame 200 lbs motor 65 lbs (6)X 56 lb batteries = 336 | ||||
| Tires | New Stock | ||||
| Conversion Time | 200 hours: 100 research (40 hours on EV ALBUM alone) 100 conversion. | ||||
| Conversion Cost | $3500 After selling off ICE parts. | ||||
| Additional Features | Utilized factory throttle assembly so I could maintain the factory panic thumb switch. I used a 0-5V automotive type throttle position sensor hooked to a wheel that the factory throttle cable hooks to. Removed the tank bottom to house the controller and (2) 36 volt powerstream 3 amp on-board chargers. Extension cord comes out the gas cap. (copied that from this EV album). I since have upgraded the onboard charger to a Kelly 8 amp 72 Volt charger. | ||||
| So far I have 650 miles on it. I ride when ever possible. You may think the 75 AH batteries are too heavy- but I like the range- acceleration and the average speed I can maintain. I tried my best to make the bike look factory stock. I am enjoying this project and I am extremely happy with it. This was a huge learning curve. I made some errors in component selection- about $200 in money spent incorrectly. Could have been much worse! This bike is great fun and the torque and acceleration is a blast on the twisty back roads. I can enjoy riding with my wife to church or to the ice cream parlor and taking my son to the Scout meetings. No scooter can compare to the range and performance for the money. Things will only get better when LiFePo batteries become affordable. Advice: BUILD ONE NOW! dont wait until LiFePO batts are available. If you want to cruise at 50 MPH- size your components for 70MPH. I would suggest a 900 CC frame for a bike with more than 48 Volts. Do the research and call the suppliers of the products before you order. I have found that EVERY EV supplier has been willing to ensure you have the correct components rather than getting your money. Buy your donor bike from Craigs list in the middle of winter! Sell the ICE parts on E-bay! Before you buy the bike- search E-bay to see what the parts are selling for in the same condition. You should be able to calculate your potential return on your investment. Dont buy a bike that is in need of restoration. Buy a good quality running bike so after the conversion it will have maximum value and long life. THANKS TO ALL WHO POSTED THEIR PROJECTS HERE TO HELP ME DESIGN AND BUILD MINE!!!! 1200 miles and counting! | |||||

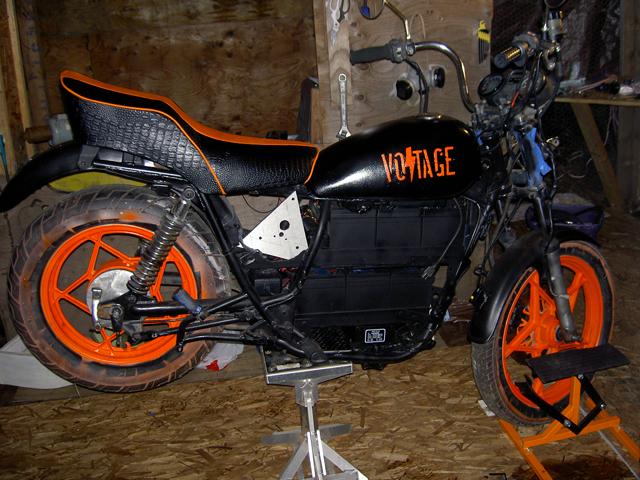

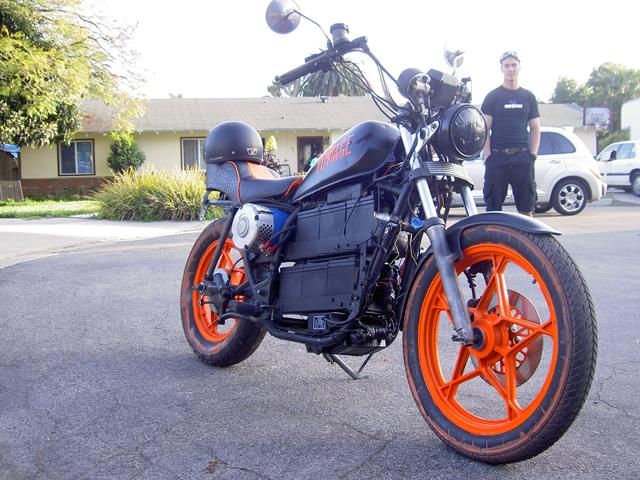

Orange Death
| Owner | Zachary |
|---|---|
| Location | Santa Barbara- California US |
| Vehicle | 1980 Suzuki GS450 |
| Motor | D&D Motor Systems- Inc. ES-10-33 Separately Excited DC |
| Controller | Sevcon PowerPack |
| Batteries | 6 Power Sonic PS-12350- 12.00 Volt- Lead-Acid- AGM |
| System Voltage | 72 Volts |
| Charger | ACI 7A supercharger x 6 |
| Heater | um. the California sun? |
| DC/DC Converter | HWZ Series DC/DC 72V to 13.5V 300W bought it from a sketchy chinese lady |
| Instrumentation | original Speedo- battery monitor from the china |
| Top Speed | 70 MPH (112 KPH) Calculations say ~70mph- however my baby ninja puts the same amount of HP on the table and it does 100- I think its going to depend on how much the SepEx control can compensate for the back emf and more importantly which sprocket I decide to keep (5:1 or 7:2) so well see... |
| Acceleration | going for FAST |
| Range | 15 Miles (24 Kilometers) with a 1C capacity of 25Ah- I didnt expect much more than 10 mi- but my most recent trip surpassed expectations! I went ~11 mi and my pack was still around 74V! |
| Seating Capacity | 2 adults |
| Curb Weight | 400 Pounds (181 Kilograms) |
| Tires | the ones that came with it |
| Conversion Time | LOTS of time spent researching not done building yet |
| Conversion Cost | Original budget - $2000 Running Total - Decided to stop keeping track. (XDlolmoneypit) |
| Longest journey to-date: ~11 miles Top speed achieved : 50mph (controller limited to 2/5 power!) Still to implement: Speedometer and security system 5/15/09: 2 of my chargers popped... Waiting for replacements to come in | |

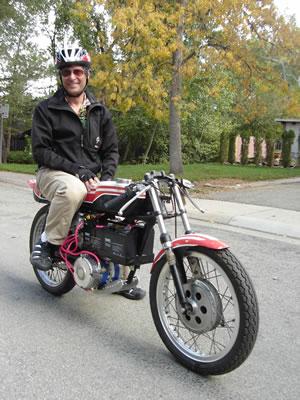

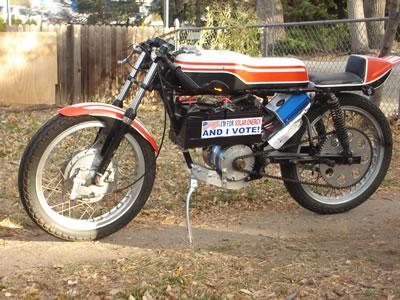

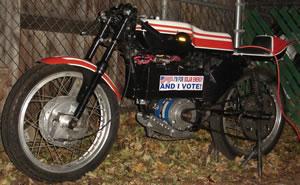

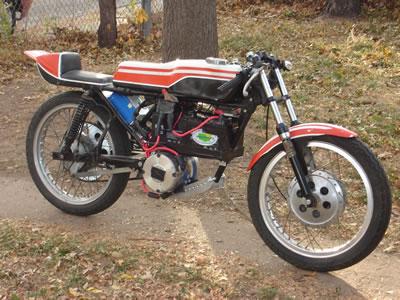

1974 Yamaha TA-125
| Owner | Seth Masia | ||
|---|---|---|---|
| Location | Boulder- Colorado US | ||
| Web | http://solartoday.wordpress.com/category/electric-fun/ | ||
| Vehicle | 1974 Yamaha TA-125 This was a Formula IV road-race bike with a 2-cylinder 2-stroke engine- putting out 29-hp with Vesco pipes. It weighed 180 lb dry and topped out at about 130mph (at 13-000 rpm). In 1976- when the reed-valve engines came in- I parked this bike at the back of the garage. In 2008- I disinterred it- dropped the engine and bolted in a golf cart motor running 48 v. With small SLA batteries it weighs 210 lb. | ||
| Motor | D&D Motor Systems- Inc. ES 71A 52 Separately Excited DC Mike Dieroff at D&D was very helpful -- responded promptly to my email- took my phone call and specified a motor that turned out to fit perfectly. No cutting or welding required: I just made a couple of aluminum cradle arms. | ||
| Drivetrain | chain drive 5.5:1 | ||
| Controller | Alltrax DCX 300 R11 300 amp programmable (regen) 24-48 v Alltrax folks also very helpful -- very responsive when I had to track down a fault in the wiring harness I had built (turned out to be a short across a switch). | ||
| Batteries | 4 12v18ah- 12.00 Volt- Lead-Acid- Flooded Cheap SLA batteries- $38 each from Battery Mart. Hope to replace these with a LiFe pack next summer. | ||
| System Voltage | 48 Volts | ||
| Charger | Soneil 4808 SRF 3.5 amp 48vdc output- input 115/230vac | ||
| Heater | Summer breeze | ||
| Instrumentation | None | ||
| Top Speed | 60 MPH (96 KPH) Not registered so Im riding it as if it were a moped -- 30 mph limit. In theory its geared for 60 and Ive gone that fast downhill. Going downhill the bike itself should be stable and safe beyond 90 mph but the motor is supposed to have a 4500 rpm limit. The bike is fun as hell. | ||
| Acceleration | Brisk to 35 mph. | ||
| Range | 12 Miles (19 Kilometers) Havent pushed it beyond 4.5 miles yet -- the distance to the office. | ||
| Watt Hours/Mile | 80 Wh/Mile City streets- traffic lights- stop signs- mild hills- SUVs. | ||
| EV Miles |
| ||
| Seating Capacity | 1 immature adult | ||
| Curb Weight | 210 Pounds (95 Kilograms) | ||
| Tires | Dunlop 80/90 H18 -- ancient road racing tyres | ||
| Conversion Time | 20 hours | ||
| Conversion Cost | $1200 | ||
| Additional Features | Plastic Magura twist-grip pot. Original massive drum brakes aid regenerative braking. Original racing-crouch riding position with clip-on bars and rear-set pegs. With no clutch or shifter- theres not much for three limbs to do. Bicycle LED head and tail lights. Bike is still sprung for 90+ mph so its a little harsh on pavement seams. Steering lock is limited so care must be taken maneuvering in parking lots. | ||
| Mar. 5: Back in operation for the spring. Batteries are good for only about four miles if air temp is below 40 degrees F. LiFe batteries may fix this. Dec 10: Parked for the winter- with the charger on a timer so it gets a little juice each night. Nov 24: Running reliably. I can ride it to work whenever the morning temp is over 38 degrees Fahrenheit and the pavement dry. Side panels are in place so the bike looks pretty nice- finally. Nov 12: Hard freeze last night and it wasnt kind to the batteries. I barely made it to work. I may have to bring the bike indoors at night -- my garage is unheated. Nov 6: The bike is running just fine. A short across the throttle switch kept the controller from booting- and it took a few days to diagnose. Controller now boots instantly. Clocks have changed and Im coming home in the dark- but Ill commute as long as the streets are dry. Meanwhile- as long as I had the wiring apart- I cut a hole in the bottom of the tank to provide clearance for the controller and a place to hide some of the cables. Looks a lot cleaner now. Sept 30: Rewired to get all the bits under cover. Its a tight fit. Acquired a gold-plated fuse holder for the 250-amp ANN fuse and found room for it on top of the battery stack. Sept 23: Want an original dolphin fairing to hide the mechanicals- and I also need to weatherproof (that is- hide) the snake nest of wiring. Sept 20: Commencing daily commute- amongst the migrating SUVs. Feel like a gazelle amongst elephants. Controller sometimes takes awhile to boot -- something is sporadic in there. Sept 19: Were up and running. Development process viewable here: WebPage | |||
eGrand Prix | motorcycle motor electric
eGrand Prix | emotorcycle motor
electric motorcycle motors | electric motorcycle conversions
electric motorcycle motor | electric motorcycle conversion
Suzuki - 94 GSXR with a D&D ES-16 and Alltrax 7245

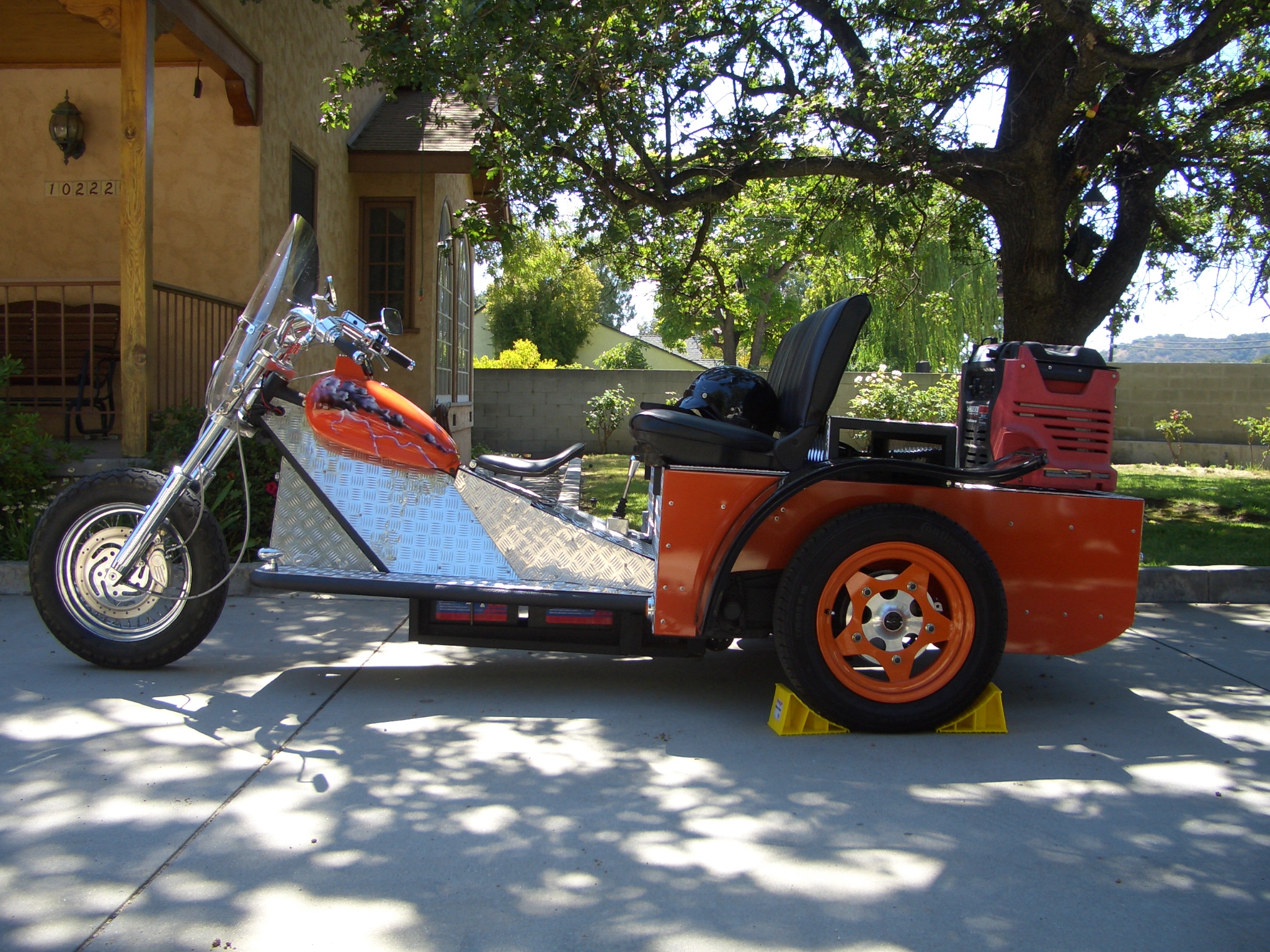

Electric Motorcycle - 3 Wheeled
91 GSXR - LiFePO4 batteries

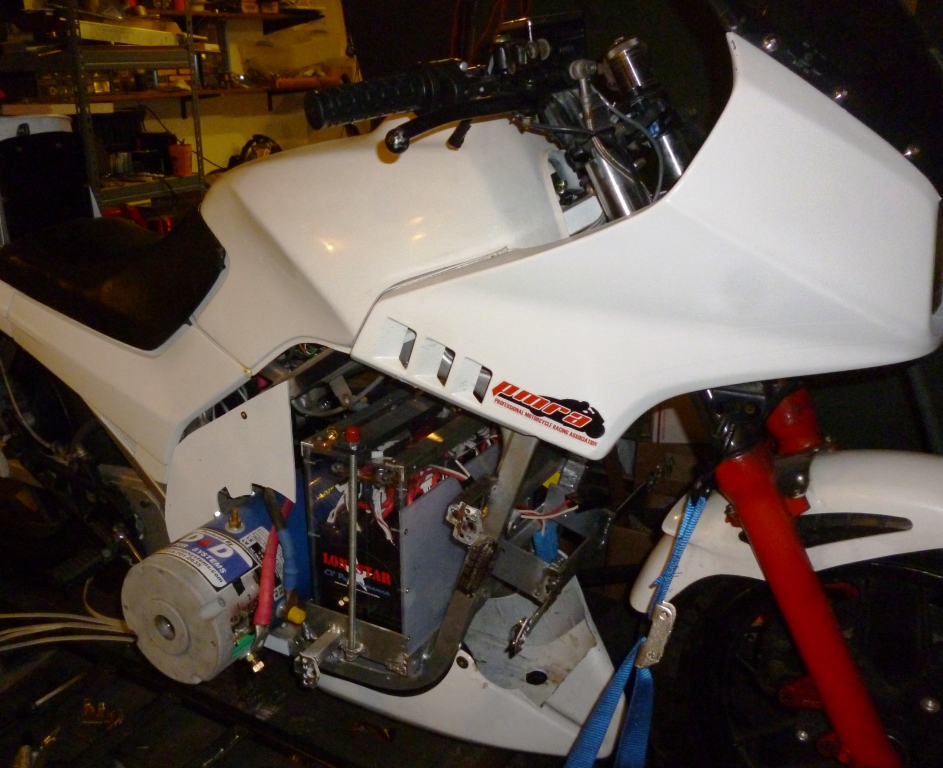

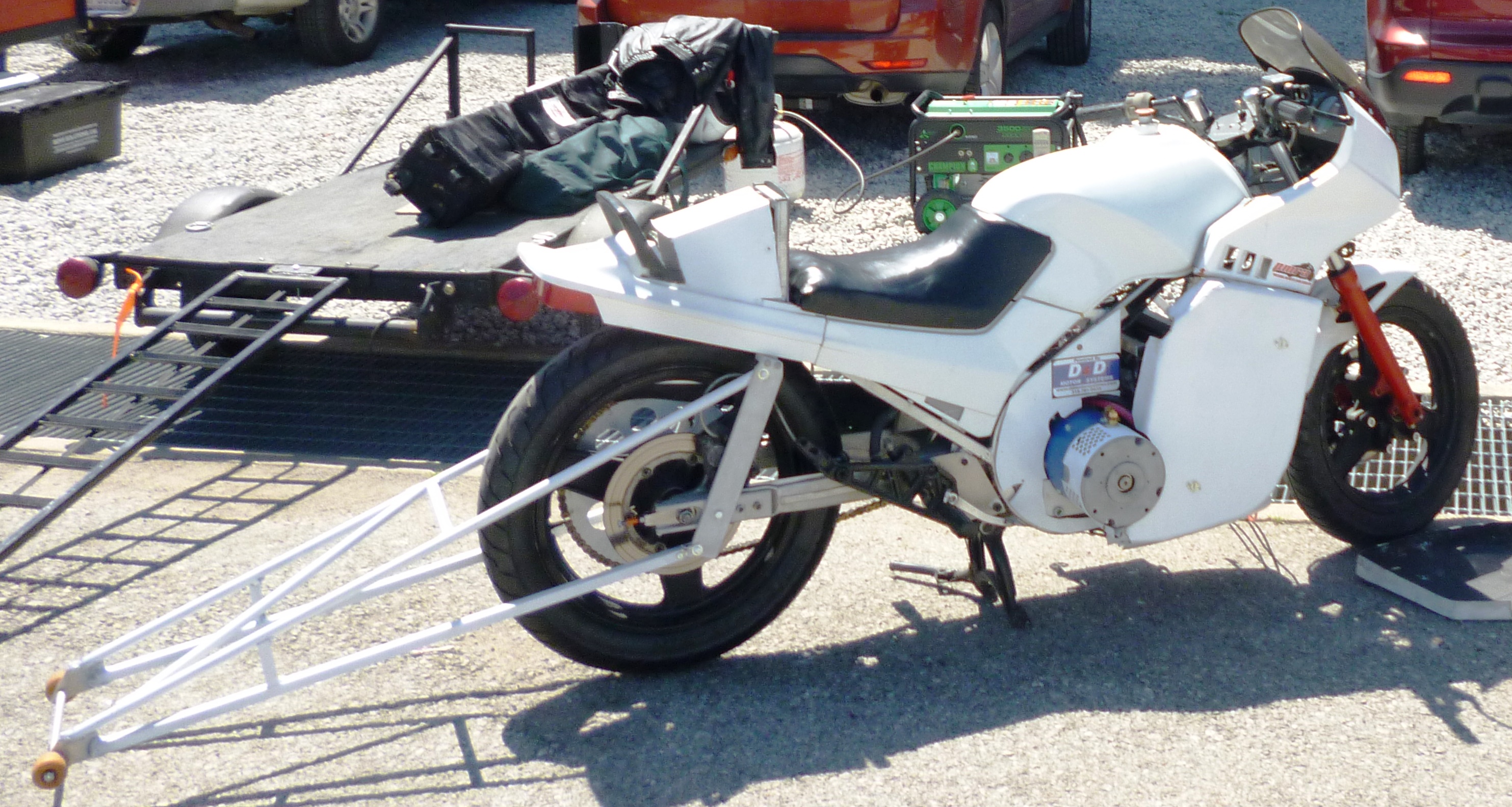

Electric Dragster - Tulsa Community College
Electric Dragster - Tulsa Community College
Electric Dragster - Tulsa Community College
Electric Dragster - Tulsa Community College
Electric Motorcycle
Electric Motorcycle
Electric Motorcycle
Electric Motorcycle
Electric Motorcycle
electric motorcycle motor | motorcycle electric motor
Motor
electric motorcycle conversion
